Subflows¶

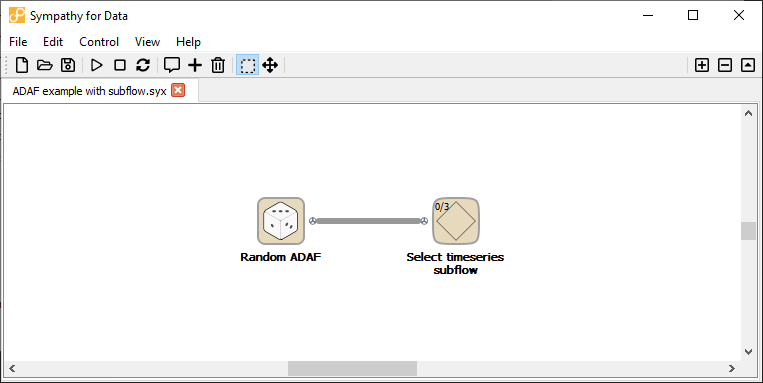

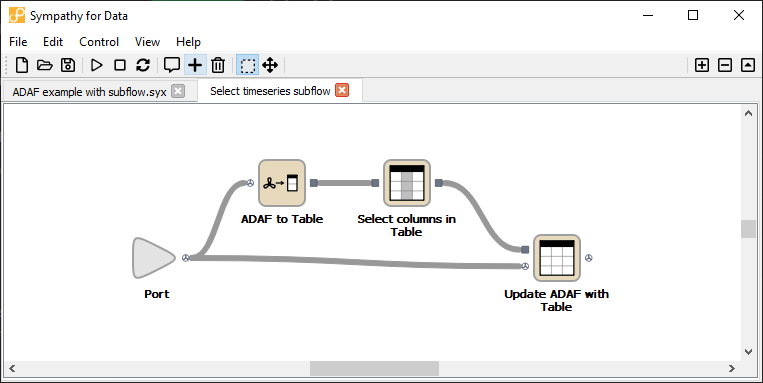

As your workflow grows it may start feeling a bit unwieldy after a while. To improve the structure of the workflow you can create a subflows from some of the nodes in your workflow. Select some nodes, right-click on one of them and choose Refactor->Create subflow from selection. This will replace all the nodes that you had selected with what looks like a single node, but is actually a subflow. You can still get at the nodes by right-clicking on the subflow and choosing Edit. This will open the “inside” of the subflow in a new tab. If you want to get back to the flat workflow structure you can right-click on a subflow and choose Refactor->Expand subflow to get all the nodes back where they were before.
Subflows can also contain yet other subflows so using this feature you can structure your workflow hierarchically.
Adding ports¶
Most of the time you want your subflow to take in data on some input ports and produce output on some output ports. Each port symbol on the “outside” of the subflow is also represented inside the subflow as a triangular node-like element.
If you want to add a new input or output port simply right-click on an empty area inside the subflow and choose Ports->Input->Create or Ports->Output->Create. A corresponding port will appear on the outside of the subflow. You can connect any data type to the little question mark of the port you just created.
Subflow settings¶

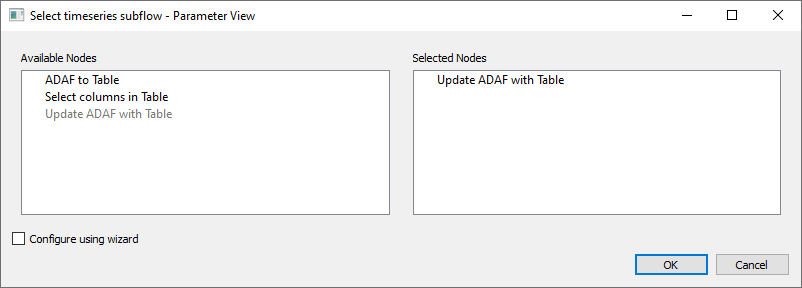

After you have created a subflow you can choose settings for how it should be configured. Edit the subflow and, from its inside, Right-click on the subflow and select Settings to launch a dialog for editing the current settings.
First of all choose the configuration dialogs that you want to include. The setting is empty by default but you can add any of the configuration dialogs from the nodes in the subflow. Move any nodes that you want from the list of available nodes (left hand side) to the list of selected nodes (right hand side).
You can use this to expose a portion of the configuration options for your subflow, this is helpful to hide some of the underlying details. As an example, starting out from the example workflow from Subflows you might want to expose only the configuration for a single node, such as: Update ADAF with Table and hide everything else.
There are two major modes to choose from: Wizard configuration and Tab configuration. These determine how the configuration dialog will be presented. By default Tab configuration is used. To change mode, simply check or uncheck the checkbox labeled “Configure using wizard”.
Subflow configuration¶
After you have created a subflow and edited its settings (See Subflow settings) you can configure it by right-clicking on the subflow and choosing Configure.
Depending on the mode, either a Wizard configuration dialog or a Tab configuration dialog will appear.
To configure without considering the configuration mode from settings right-click and choose Advanced->Configure, then choose the appropriate configuration mode.

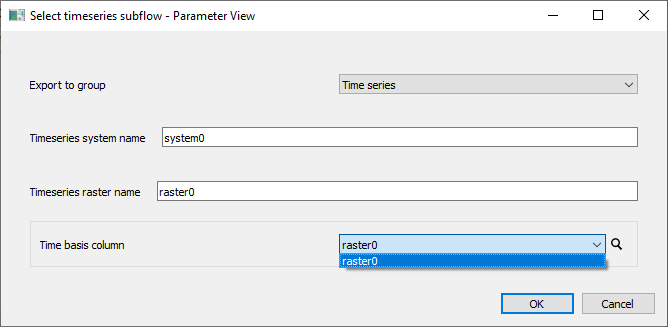

Tab configuration¶
This configuration mode organizes the selected node dialogs in tabs. When selected node dialogs include nested subflows their node dialogs will be grouped together in a tab unless there is only one dialog.
Having all selected dialogs available as tabs provides a good overview and makes it possible to quickly select the nodes of interest and configure them.
The tabs are ordered according to the order of selected nodes in Subflow settings.

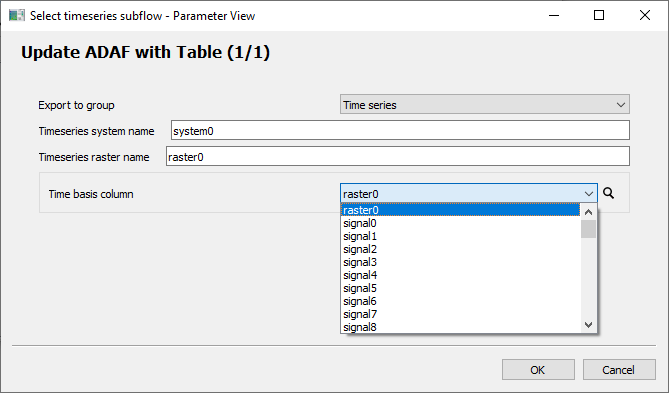

Wizard configuration¶
This configuration mode presents a wizard showing the configuration dialogs for the selected nodes, one at a time. The nodes will be shown in dependency order and the wizard makes sure that every preceding node is executed before each selected node dialog.
Having the preceding nodes executed when configuring is useful when the content of the dialogs depends on data, for example, the column names in the input table.
Linked Subflows¶
Ordinary subflows are integrated into your workflow, and are stored within the same workflow file. If you have made a very useful subflow you may want to use that in several different workflows or many times in the same workflow. You could of course simply copy your subflow but maintaining it would become cumbersome since any update that you wanted to do in the subflow will have to be made manually in all copies of the subflow.
Instead you can create a linked subflow by right-clicking on the subflow and selecting Refactor->Save subflow as link. This will prompt you to save the subflow to a file and the containing workflow will now only store a link to the subflow. This is indicated by a pair of links of a chain on the outside of the subflow.
If you edit a linked subflow and save the changes any workflow that you open which contains a link to that subflow will also see those changes.
Warning
Note that the contents of any linked subflows are only read when you open a workflow. Meaning that if you already have a workflow containing a link to the subflow open when you make a change in the subflow, that workflow might not see the change until you close and reopen the workflow.
Parameter overrides¶
Configuring a linked subflow will actually not change the subflow at all, but instead sets the new configuration as overrides. These overrides are stored in the flow containing the subflow and used instead of the nodes’ normal parameters. This can be very useful when you want to use a subflow many times but with different configurations. Each place where you use it will link to the same workflow file, but will use different overrides.
If a subflow has overrides set, this is indicated with a plus sign on the subflow.
Note that configuring a node which has override directly will also only change the overrides. Similarly, when copying a node with overrides, the pasted node will have the active override parameters as its only parameters.
You can remove the overrides for a specific node by deselecting it in the subflow settings.
Locked Subflows¶

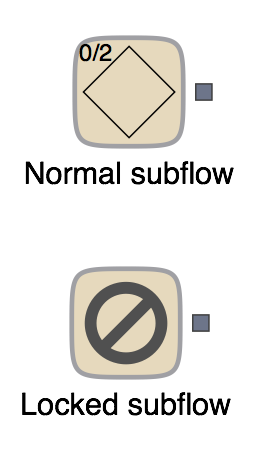

Locked subflows are executed in one process without generating intermediate files for the purpose of faster execution. They are recognized by the no sign icon (a circle with backslash inside) and also by the fact that there are no numbers in the left corner showing the number of executed nodes inside divided by total number of nodes. Inside normal subflows they count as a single node.
When executed from the outside, all of the nodes inside are executed. Afterwards, any change of the configuration or content will cause the state to reset back to Armed. It can sometimes be useful to think of subflows like normal nodes, but built from other nodes. Like normal nodes, you mainly use them from the outside. Editing the inside of a locked flow, in Sympathy, would then correspond to editing the source code for a normal node. Locking subflows can help speed up the execution by avoiding costly disk operations. When editing the inside of a locked subflow it will behave like a normal subflow.
The only node ports of locked subflows that are written to disk (and generate intermediate files) are output ports from nodes connected to the top level Flow Output ports of the locked flow. Advanced: if such a node has several outputs of which only a few are connected to Flow Output ports it can, in some cases, be useful to insert Propagate First Input nodes to avoid unnecessary disk operations.
Locking and unlocking of subflows is done in the context menu for subflows. It is accessed by right-clicking and choosing Advanced->Execution mode->Locked. A check mark in context menu item indicates that the subflow is currently locked.
Node states¶

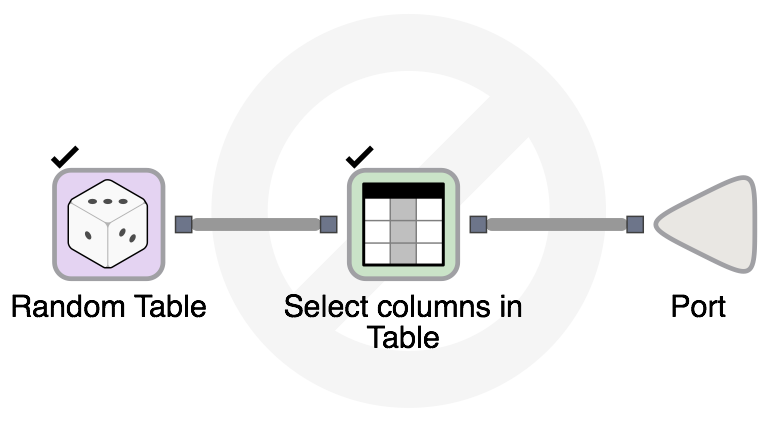

In addition to the most common states for nodes, see Node states, nodes executed in locked subflows have a separate state to indicate that that they are different from normally executed nodes and do not allow you to click on their ports to inspect their output data. The table below shows details for the special state for nodes executed in locked mode.
State |
Color |
State icon |
Explanation |
---|---|---|---|
Done locked |
Light purple |
Check mark |
Successfully executed without disk output. |
Warning
Note that executing in locked mode can significantly increase memory use, since data on intermediate output ports that would otherwise have been written to disk is kept in memory.
Subflows in the Node Library¶
Subflows can be used to build new nodes for third party libraries. This can be accomplished by saving them with filenames matching flow_*.syx in a library folder. The identifier field needs to be set on the top level flow (Right-click -> Properties: General section). Subflows used as nodes will be linked using the identifier instead of the filename. To avoid clashes, use an identifier in the following format: <library-identifier>.<flow-identifier>. This is the same format that should be used for nodes.
Missing subflows¶

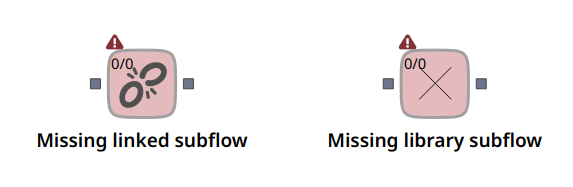

A subflow that is linked or that comes from the library can be missing in the currently loaded flow. Similarly to nodes, Such nodes will be shown as if they were in Error state and cannot be used until they are available. Linked subflows that are missing also show a broken link icon.
Optional ports¶
Subflow ports can be marked optional, right-click on a input or output pin and choose Advanced->Properties. This will present an interface where the port can be marked as optional. Optional ports can be added to or removed from subflows. This can be useful when creating library nodes from subflows or building reusable flows for use as linked subflows.
