Libraries

Creating new libraries

When Sympathy starts it looks for nodes in all folders in File->Preferences->Node Libraries in Sympathy. So to create your own node or plugins, first you have to create a library and add it to Sympathy’s list of libraries.

To create a library all you need to do is use the Library Wizard. Start it by clicking File->Wizards->New Library.

On the first page you will add some meta data about your library. Only name and identifier are mandatory, but go ahead and add as much as you can!

On the second page you will select the path where the library will be saved, and a preview of the folders and files created will be displayed. You can change the common package name if you want, but this is not needed.

When you have finished the wizard, the library has been automatically added to File->Preferences->Node Libraries. Note, this is not synonymous with adding libraries to the library view.

Library meta data

The file Library.ini in the library root may contain extra meta data for the library. The following fields are recognized in the General section:

name

The human readable name of the library.

description

The human readable description of the library.

identifier

And identifier for this library. Should only contain

library_path

The path of the library folder relative to the library root.

common_path

The path of the package inside the common folder relative to the library root.

maintainer

The name and contact information of the current maintainer of the libary. Can be an indiviual person, an organisation or a community.

copyright

A copyright notice that is shown with all nodes.

repository

Url to repository for the library).

Library structure

This is the recommended way to structure a node library:

<Library root>
├─ Library
│  └─ <Library name>
│     └─ ... (nodes & plugins)
├─ Common
│  └─ <package_name>
│     └─ ... (python modules)
├─ Tests
│  ├─ Unit
│  └─ Workflow
├─ Examples
└─ library.ini

The Library folder is where you put nodes and plugins. The Common folder is for additional python modules. Tests of your library’s functionality should be placed in Tests and Example flows that show off how your nodes work should be placed in Examples. Tests and Exampels folders are completely optional.

Add extra modules to your library

If your node code is starting to become too big to keep it all in a single file or if you created some nice utility functions that you want to use in several different node files you can place them in the common python package. I.e. the subfolder to the folder Common.

Open your favorite editor and create the file:

boblib/Common/boblib/mymodule.py

The Common folder will automatically be added to sys.path so you will now be able to import modules from that package in your node code:

from boblib import mymodule

Library tags

Each library may define additional node tags. These tag definitions go into the file Common/<package_name>/__init__.py, and it can look something like this:

from sympathy.api.nodeconfig import LibraryTags, TagType, GroupTagType


def library_tags():
    return [
        ExamplelibLibraryTags
    ]


class ExamplelibLibraryTags(LibraryTags):
    class_tags = (
        GroupTagType(
            'example',

            # First group
            [GroupTagType(
                'GroupOne',
                [TagType('TagOne',
                         'Tag description'),
                 TagType('TagTwo',
                         'Tag description')]
            ),

            # Second group
            GroupTagType(
                'GroupTwo',
                [TagType('TagOne',
                         'Tag description',
                         name='Optional tag name that can hold non-alphabetic characters')]
            ),

            # Third group
            GroupTagType(
                'GroupThree',
                [TagType('TagOne',
                         'Tag description'),
                 TagType('TagTwo',
                         'Tag description'),
                 TagType('TagThree',
                         'Tag description')],
                name='Optional group name that can hold non-alphabetic characters')
            ]
        )
    )

    def __init__(self):
        super().__init__()
        self._root = self.class_tags

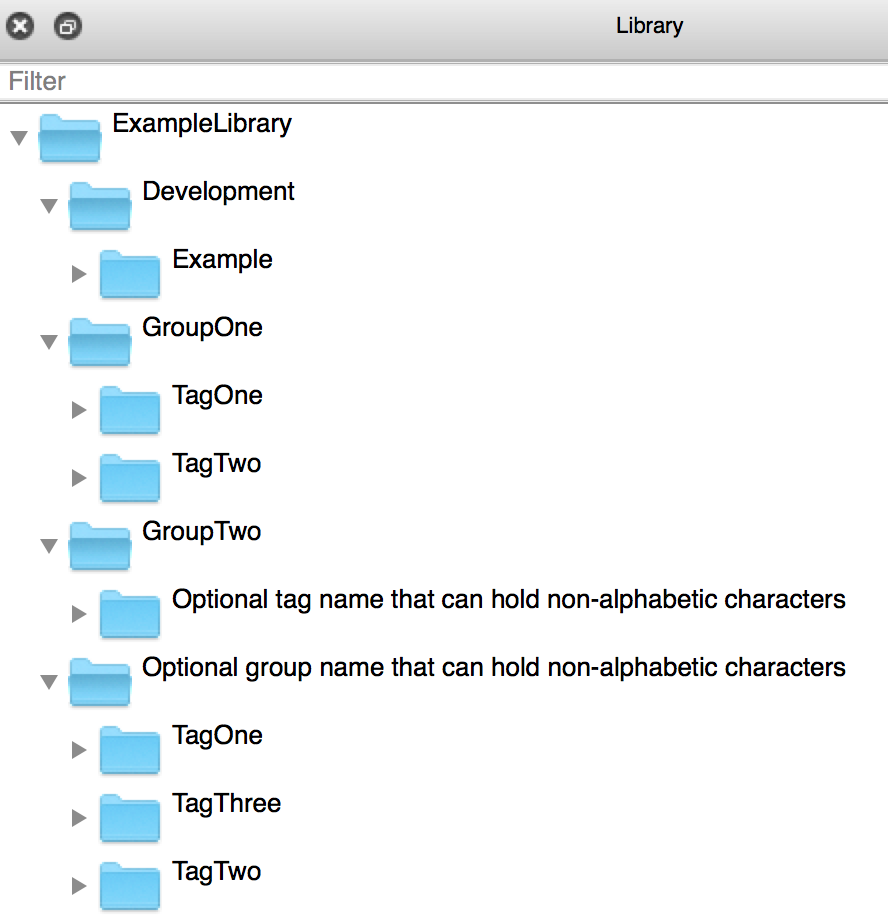

This will create a structure like below (if using Separated Tag Layout, otherwise the tags will be mixed in with those already existing):

Note that tags won’t show up in the tree until they are used by at least one node.

Example flows

Workflows in the Examples directory (create it, if it does not exist, before adding example flows) of a library will be treated as examples.

Example flows are treated similarly to test workflows in that they are executed automatically when running the built-in test suite. See Writing tests for your nodes.

Additionally, example flows can specify (on the top-level) that they are examples for one or several nodes by including a reference in the following format: Node example: *<node-identifier>* (for example, Node example: *com.example.boblib.helloworld*) inside text fields. Alternatively, to make the example reference fit better as part of a sentence, the following format is also supported: Node example for *<node-identifier>*.

The documentation for referenced nodes will include links to referencing example flows. Example flows are copied into the documentation folder and as a rule, it is best if they are self-contained and do not depend on other workflows or data files.
